Fittings

Buttweld Fittings

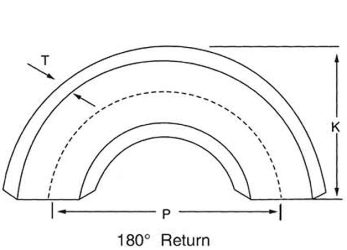

Nominal pipe size Nps	Outside		Center to end		Center to center		Back to Faces
	Diameter at bevel	45°Elbow	90°Elbows		180°Return
	D	H	F		P		K
	D	Long Radius	Long Radius	Short Radius	Long Radius	Short Radius	Long Radius	Short Radius
1/2	21.3	16	38	-	76	-	48	-
3/4	26.7	19	38	-	76	-	51	-
1	33.4	22	38	25	76	51	56	41
1 1/4	42.2	25	48	32	95	64	70	52
1 1/2	48.3	29	57	38	114	76.2	83	62
2	60.3	35	76	51	152	102	106	81
2 1/2	73.0	44	95	64	190	127	132	100
3	88.9	51	114	76	229	152	159	121
3 1/2	101.6	57	133	89	267	177	184	140
4	114.3	64	152	102	305	203	210	159
5	141.3	79	190	127	381	254	262	197
6	168.3	95	229	152	457	305	313	237
8	219.1	127	305	203	610	406	414	313
10	273	159	381	254	762	508	518	391
12	323.8	190	457	305	914	610	619	467
14	355.6	222	533	356	1067	711	711	533
16	406.4	254	610	406	1219	813	813	610
18	457	286	686	457	1372	914	914	686
20	508	318	762	508	1524	1016	1016	762
22	559	343	838	559	1676	1118	1118	838
24	610	381	914	610	1829	1219	1219	914
26	660	405	991	Note: 90 elbow is according to ASME/ANSI B16.9-2001
28	711	438	1067
30	762	470	1143
32	813	502	1219
34	864	533	1295
36	914	565	1372
38	965	600	1448
40	1016	632	1524
42	1067	660	1600
44	1118	695	1676
46	1168	727	1753
48	1219	759	1829
