Y strainer

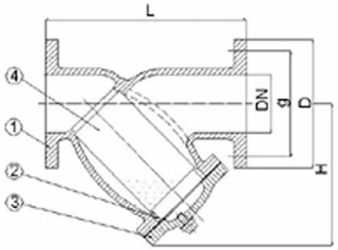

Components
| 1 | body | Cast iron or ductile iron |
| 2 | bolt | Cast iron or ductile iron |
| 3 | cover | Cast iron or ductile iron |
| 4 | screen | Carbon steel or stainless steel |
Application
| 1 | Face to face is according to ：ANSI B16.10 |
| 2 | Flange drilled is according to：ANSI B16.1/ANSI B16.5 |
| 3 | Working pressure：125PSI/150PSI |
Test
|
Working Pressure |
|
125PSI/150PSI |
|
Test Pressure |
Shell |
300PSI |
|
|
Seat |
200PSI |
Dimensions Unit: inch
| SIZE | 2″ | 2 1/2″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ |
| L | 8 22/25″ | 10 3/4″ | 11 1/2″ | 13 7/8″ | 16 1/2″ | 18 1/2″ | 21 3/8″ | 26″ | 30″ |
| H | 4 3/4″ | 5 1/2″ | 6 7/10″ | 8 5/8″ | 10 1/4″ | 11 4/5″ | 14 1/8″ | 17 3/8″ | 20 7/10″ |
| 125PSI | |||||||||
| D | 6″ | 7″ | 7 1/2″ | 9″ | 10″ | 11″ | 13 1/2″ | 16″ | 19″ |
| g | 4 3/4″ | 5 1/2″ | >6″ | 7 1/2″ | 8 1/2″ | 9 1/2″ | 11 3/4″ | 14 1/4″ | 17″ |
| 150PSI | |||||||||
| D | 6″ | 7″ | 7 1/2″ | 9″ | 10″ | 11″ | 13 1/2″ | 16″ | 19″ |
| g | 4 3/4″ | 5 1/2″ | 6″ | 7 1/2″ | 8 1/2″ | 9 1/2″ | 11 3/4″ | 14 1/4″ | 17″ |
